Stainless
Steel Pipes
Specification
For Stainless Steel Pipes |
| Material | Stainless Steels |
| Material Grades | SS -304/304L, 316 / 316L |
| Size | 1/2" to 48" - varying with material Grades |
| Schedules | Sch 5S Thru Sch 80S |
| Materials to NACE MR.01.75 | |
|
Dimension
For Stainless Steel Pipes as per ANSI B36.10, B36.16
Chemical
Composition - Stainless Steel Grades |
| TENSILE | YIELD | ELONGATION | ||||||||||
| Grades | C% | MN% | P% 0.045 | S% 0.75 | SI% 0.75 | CR% | MO% | NI% | KSI/MPA | KSI/MPA | MIN% | |
| ASTM A 312 TP 304 | 0.08 |
2 |
0.04 |
0.03 |
1 |
18 - 20 | ***** | 8 To11 | 75/515 | 30/205 |
35 |
|
| ASTM A 312 TP 304H | 0.04 - 0.10 | 2 |
0.04 |
0.03 |
1 |
18 - 20 | ***** | 8 To11 | 75/515 | 30/205 | 35 |
|
| ASTM A 312 TP 304L |
0.030 |
2 |
0.04 |
0.03 |
1 |
18 - 20 | **** | 8 To13 | 70/485 | 25/170 |
35 |
|
| ASTM A 312 TP 316 | 0.04 - 0.08 | 2 |
0.04 |
0.03 |
1 |
16 - 18 | 2 To 3 | 11 To14 | 75/515 | 30/205 | 35 |
|
| ASTM A 312 TP 316H | 0.04 - 0.10 |
2 |
0.04 |
0.03 |
1 |
16 - 18 | 2 To 3 | 11 To14 | 75/515 | 30/205 |
35 |
|
| ASTM A 312 TP 316L | 0.030 |
2 |
0.04 |
0.03 |
1 |
16 - 18 | 2 To 3 | 10 To15 | 70/485 | 25/170 | 35 |
|
| ASTM A 312 TP 317 |
0.08 |
2 |
0.04 |
0.03 |
1 |
18 - 20 | 3 To 4 | 11 To14 | 75/515 | 30/205 |
35 |
|
| ASTM A 312 TP 310 | 0.15 |
2 |
0.04 |
0.03 |
1 |
24 - 26 | ******* | 19 To 22 | 75/515 | 30/205 | 35 |
|
| ASTM A 312 TP 309 |
0.15 |
2 |
0.04 |
0.03 |
1 |
22 - 24 | ******* | 12 To15 | 75/515 | 30/205 |
35 |
|
| ASTM A 312 TP 347 | 0.08 |
2 |
0.04 |
0.03 |
1 |
17 - 20 | ******* | 9 To13 | 75/515 | 30/205 | 35 |
|
| ASTM A 312 TP 347H | 0.04 - 0.10 |
2 |
0.04 |
0.03 |
1 |
17 - 20 | ******* | 9 To13 | 75/515 | 30/205 |
35 |
|
| ASTM A 312 TP 321 | 0.08 |
2 |
0.04 |
0.03 |
1 |
17 - 20 | ******* | 9 To13 | 75/515 | 30/205 | 35 |
|
| ASTM A 312 TP 321H | 0.04 - 0.10 |
2 |
0.04 |
0.03 |
1 |
17 - 20 | ******* | 9 To13 | 75/515 | 30/205 |
35 |
|
| MAGNETIC | 409 |
0.03 |
1 |
0.04 |
0.03 |
1 |
10.5 -11.75 | 0.5 | - | - |
||
| MAGNETIC |
409M |
0.03 |
0.08
- 1.5 |
0.04 |
0.03 |
1 |
10.8 - 12.5 | 1.5 | - |
- |
||
| MAGNETIC | 410 |
0.15 |
1 |
0.04 |
0.03 |
1 |
11.5 - 13.5 | 0.6 | - | - |
||
| MAGNETIC |
410S |
0.08 |
1 |
0.04 |
0.03 |
1 |
11.5 - 13.5 | 0.6 | - - |
-- |
||
| MAGNETIC | 420 |
0.15 |
1 |
0.04 |
0.03 |
1 |
12.0 - 14.0 | 0.6 | - | - |
||
| MAGNETIC |
430 |
0.12 |
1 |
0.04 |
0.03 |
1 |
16.0 - 18.0 | - | ||||
| MAGNETIC | 440 |
0.95 - 1.0 | 1 |
0.04 |
0.03 |
1 |
16.0 - 18.0 | 0.75 | - | |||
| MAGNETIC |
446 |
0.2 |
1.5 |
0.04 |
0.03 |
1 |
23.0 - 27.0 | 0.6 | - |
- |
||
| A 182 F 304 | 0.08 |
2 |
0.04 |
0.03 |
1 |
18 - 20 | ***** | 8 To 11 | 75/515 | 30/205 | 30 |
|
| A 182 F 304H | 0.04 - 0.10 |
2 |
0.04 |
0.03 |
1 |
18 - 20 | ***** | 8 To 11 | 75/515 | 30/205 |
30 |
|
| A 182 F 304L | 0.35 |
2 |
0.04 |
0.03 |
1 |
18 - 20 | **** | 8 To 13 | 70/485 | 25/170 | 30 |
|
| A 182 F 316 | 0.04 - 0.08 |
2 |
0.04 |
0.03 |
1 |
16 - 18 | 2 To 3 | 11 To 14 | 75/515 | 30/205 |
30 |
|
| A 182 F 316H | 0.04 - 0.10 | 2 |
0.04 |
0.03 |
1 |
16 - 18 | 2 To 3 | 11 To 14 | 75/515 | 30/205 | 30 |
|
| A 182 F 316L |
0.035 |
2 |
0.04 |
0.03 |
1 |
16 - 18 | 2 To 3 | 10 To 15 | 70/485 | 25/170 |
30 |
|
| A 182 F 317 | 0.08 |
2 |
0.04 |
0.03 |
1 |
18 - 20 | 3 To 4 | 11 To 14 | 75/515 | 30/205 | 30 |
|
| A 182 F 310 |
0.15 |
2 |
0.04 |
0.03 |
1 |
24 - 26 | ******* | 19 To 22 | 75/515 | 30/205 |
30 |
|
| A 182 F 309 | 0.15 |
2 |
0.04 |
0.03 |
1 |
22 - 24 | ******* | 12 To 15 | 75/515 | 30/205 | 30 |
|
| A 182 F 347 |
0.08 |
2 |
0.04 |
0.03 |
1 |
17 - 20 | ******* | 9 to 13 | 75/515 | 30/205 |
30 |
|
| A 182 F 347 H | 0.04 - 0.10 | 2 |
0.04 |
0.03 |
1 |
17 - 20 | ******* | 9 to 13 | 75/515 | 30/205 | 30 |
|
| A 182 F 321 |
0.08 |
2 |
0.04 |
0.03 |
1 |
17 - 20 | ******* | 9 to 13 | 75/515 | 30/205 |
30 |
|
| A 182 F 32 H | 0.04 - 0.10 | 2 |
0.04 |
0.03 |
1 |
17 - 20 | ******* | 9 to 13 | 75/515 | 30/205 | 30 |
|
|

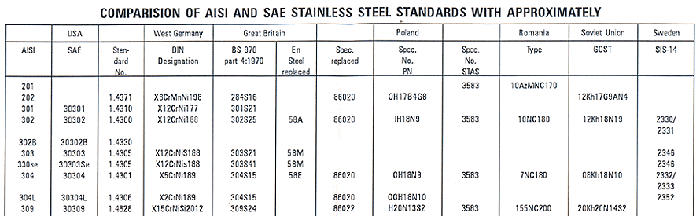

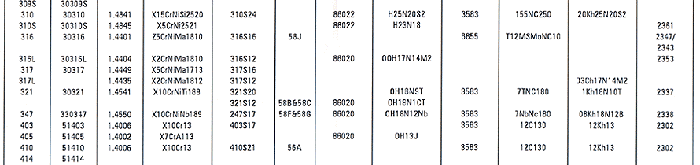

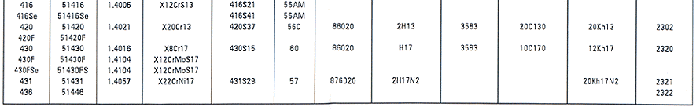

Comparision
of AISI & SAE Stainless Steel Standards)
|
|
|
